Radial Velocity#
Here is how to model the radial velocity of a non-uniform star with spotter.
Let’s create a spotted star that rotates
from spotter import Star
from spotter import video
star = Star.from_sides(30, u=(0.2,), period=1.0, inc=1.0, obl=0.7)
star = star.set(y=1 - 0.8 * star.spot(0.0, 0.0, 0.3))
video(star, rv=True)

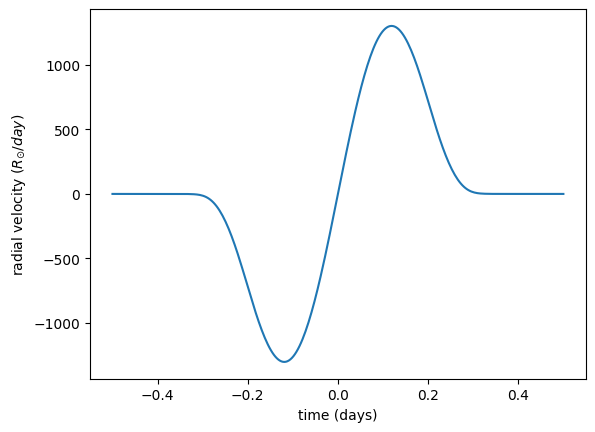

We can then compute its RV signal
import numpy as np
from spotter.doppler import radial_velocity
import matplotlib.pyplot as plt
time = np.linspace(-0.5, 0.5, 300)
rv = radial_velocity(star, time)[0]
plt.plot(time, rv)
plt.ylabel(r"radial velocity ($R_{\odot}/day$)")
plt.xlabel("time (days)")
Text(0.5, 0, 'time (days)')
